Sleek design and essential features: The REP 202H combines a stylish appearance
Simple setup and management: Enjoy hassle-free deployment with auto-provisioning options and a user-friendly Web management
Budget-friendly and green: The REP 202H offers a cost-effective solution
Versatile and compatible: Beyond hotels, it’s ideal for schools, hospitals, and more.

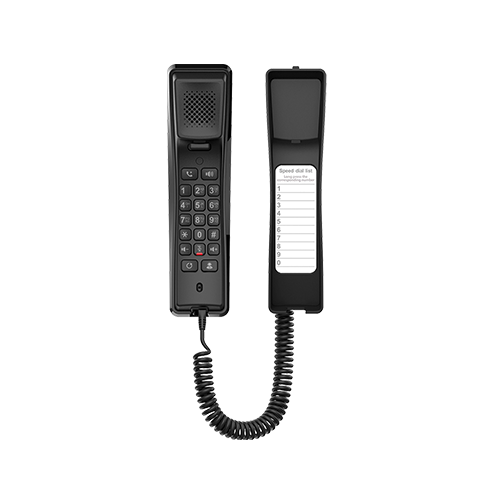

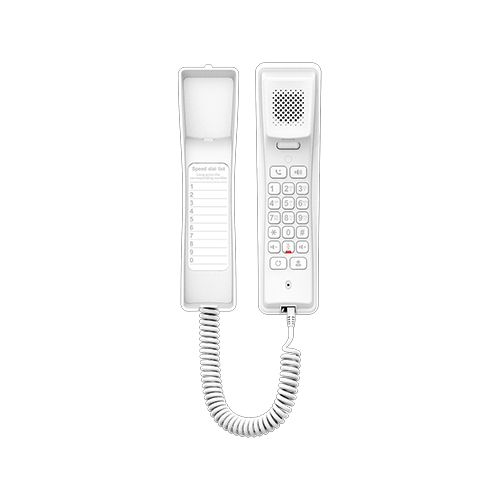

Tiny and stylish, Redstone REP202H compact IP phone possesses brand features including 2 SIP lines, 10 speed dial keys, 1 programmable DSS key and a HD speaker on handset. It’s support the install mode of desktop or wall-mounted, and power supply mode of PoE or power adapter.（Marks ： For PoE Only REP202H/P Series Support）
The Redstone REP202H is more than a hotel phone and also can be applied in multiple scenarios, such as school, hospital, supermarket and residence.
01
Enhanced Communication
The REP 202H empowers users with efficient and effective communication tools. The 10 speed dial keys allow for instant access to frequently called contacts, streamlining the process of initiating calls. The programmable DSS key further enhances productivity by enabling quick access to important functions or contacts.With features like redial, call waiting, and intercom, users can seamlessly manage multiple calls and collaborate with colleagues without interruption
02
High-Quality Audio
The REP 202H delivers crystal-clear audio quality, ensuring that conversations are easy to understand and free from distortion. The HD voice microphone/speaker system provides a wide frequency response range, capturing and reproducing sound accurately. This is particularly beneficial for businesses where clear communication is crucial,such as call centers, reception areas, and executive offices.
03
Versatile Installation and Power Options
The REP 202H offers flexibility in installation and power options. It can be conveniently mounted on a desk or wall, allowing businesses to optimize their workspace.Additionally, it supports both Power over Ethernet (PoE) and a power adapter, providing versatility in power source selection.This flexibility ensures that the phone can be easily integrated into existing network infrastructures and eliminates the need for additional power outlets. （Marks ： For PoE Only REP202H/P Series Support）
04
Robust Network Connectivity
The REP 202H boasts reliable network connectivity, ensuring uninterrupted communication. It supports both IPv4 and IPv6 protocols, allowing compatibility with a wide range of network environments.The 10/100Mbps Ethernet connection ensures fast and stable data transfer, minimizing latency and ensuring smooth call quality. The phone also features QoS support and dynamic adaptive jitter buffer, further enhancing network performance and call reliability.
Display: 128x64 pixel LCD display with white LED backlight
Audio: HD voice microphone/speaker (handset/hands-free, 0 ~ 7KHz frequency response), HAC handset, Wideband ADC/DAC 16KHz sampling, Narrowband codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC, Wideband codec: G.722, Opus, Full-duplex Acoustic Echo Canceller (AEC), Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC), Packet Loss Concealment (PLC), Dynamic adaptive jitter buffer, DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO), VQM voice quality monitoring
Network: Physical: 10/100Mbps ethernet, IP Mode:IPv4/IPv6/IPv4&IPv6, IP Configuration: Static IP / DHCP / PPPoE, Network Access Control: 802.1x, VPN: L2TP / OpenVPN, VLAN, LLDP, CDP, QoS, RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Protocols: SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, CDP, PPPoE, 802.1x
Physical Specifications: Keypad: 19 keys, including 12 Standard Phone Digits keys(0-9: Speed dial configuration on webpage), 3 Function keys (Hands-free , Redial ,Hold), 3 Volume Control keys, Up/Down/Mute(with red color LED), 1 DSS key, HD handset (RJ11) x1, RJ11 handset cord x1, Status indicator light x1 (two-color LED), RJ11 port x1: handset x1, RJ45 port x1: network x1, DC port x1: Φ5.5x2.1x10mm, DC power input: DC5V / 2A or PoE, PoE level: Class 1, Working temperature: 0~45℃, Working humidity: 10~95%, Installation: Desktop / Wall-mounted, Color: black/white, Device dimensions: 55.8x215x57.8 mm, Gift box dimensions: 224x75x62 mm, Outer CTN dimensions: 335x323x243 mm (20 PCS)
REP201H
| REP202H
| REP203H
| REP1100
| REP1300
| |
|---|---|---|---|---|---|
| SIP Lines | 2 | 2 | 2 | 2 | 6 |
| Display Screen | NA | NA | 3.5” Color Display | 128x48 Dot-matrix | 2.8” Color Display |
| Network Port | 10/100Mbps | 10/100Mbps | 10/100Mbps | 10/100Mbps | 10/100/1000Mbps |
| POE Support | √ | √ | √ | √ | √ |
| Audio Codec | G.711A/U, G.729AB, G723.1, G726, iLBC, G.722, Opus | G.711a/u, G.723.1, G.726, G.729A/B, iLBC, G.722, Opus | G.711a/u, G.723.1, G.726-32K, G.729AB, G.722 | G.711a/u, G.723.1, G.726-32K, G.729AB | G.711a/u, G.726-16K, G726-24k, G726-40k, G.726-32K, G.729A/B, iLBC , G723.1(Optional), G.722, Opus |
