Connected to IMS Networks via ONU
Dual-redundant Gigabit-Ethernet ports
Dual AC/DC power supplies (optional)
Class I lightning protection
REX1000 IP-PBX provides versatile solutions containing voice/video call, voice message broadcast, Fax, call recording, mobile extensions, to improve work efficiency and service quality of a large-scale enterprise. The REX1000 supports up to 1000 extensions, and the capable of multi-site networking enable the extensions can be expanded to thousands, to meet the requirement of either a single site or multi-site deployment.
01
High Integration and Expansibility

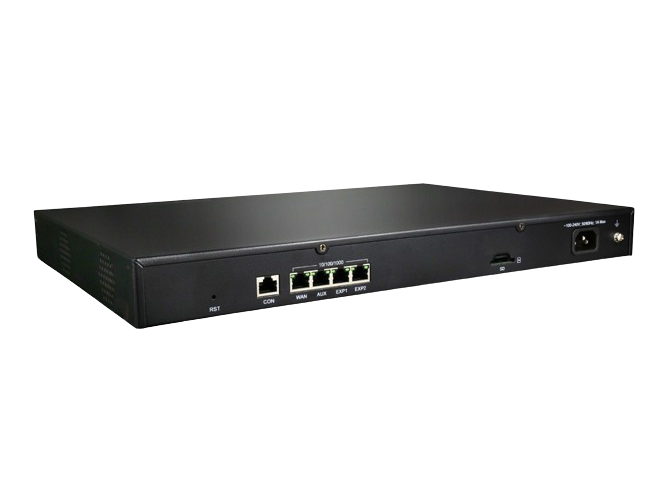

The REX1000 is designed as a compact unit with 1U height and it is applicable to a 19 inch rack. It integrates SIP soft switch, voice codec, media processing. The REX1000 analog extensions can be expanded by connecting Redstone gateways.
02
High Reliability
The REX1000 provides high availability features including 1+1 redundancy of Gigabit-Ethernet ports and AC/DC power supplies (optional).In addition, with high availability featuring primary-standby, active-standby, as well as PSTN failover to handle the failure of the SIP proxy servers, power supply, and network, users are provided with carrier-class availability with minimized potential downtime.
03
Easy Remote Management
Embedded with the Redstone Cloud client, the device located behind enterprise NAT or firewall can be easily accessed for maintenance and troubleshooting purpose or by far-end applications. Real time monitoring, alarm notification, remote packet capture and software upgrading can be performed with the Redstone or third-party Remote Device Management Systems connecting over TR-069 or SNMP protocol.
04
Multi-Site Networking, Unified Management
The peer-to-peer communication allows the REX1000 to be easily accessed by remote Redstone IP-PBXs, gateways, IP phones, mobile extensions, so all extensions of headquarters and branches call each other for free and all trunks can be shared. The unified management of call recordings and call histories is achieved too.
Connected to IMS Networks via ONU
Peer-to-peer communication between Redstone IP-PBX and SIP terminals across NAT without the need for static IP addresses, DDNS or port mapping on the access router
Headquarters and branch-office communications through SIP-based tie trunks
Mobile extensions keep you connected anywhere, at any time on any network
XML/HTTP-based RESTful API for third-party applications
Remote access via the Redstone Cloud*
Management with the Redstone or third-party Remote Device Management Systems (TR-069, SNMP)
Dual-redundant Gigabit-Ethernet ports
Dual AC/DC power supplies (optional)
Class I lightning protection
REX20
| REX50
| REX200
| REX500
| REX1000
| REX8000
| |
| Max. IP extensions | 20 | 50 | 168 | 400 | 1000 | 8000 |
| Max. IP trunks | 24 | 62 | 216 | 496 | 1000 | 8000 |
| Max. built-in analog extensions+analog trunks | 4 | 12 | 48 | 96 | NA | NA |
| Max. concurrent calls | 24 | 30 | 90 | 120 | 200 | 800 |
| Size | 35×203×136mm | 41×286×161mm | 44×440×260mm | 85×440×300mm | 44×440×300mm | 88×442×420mm |
